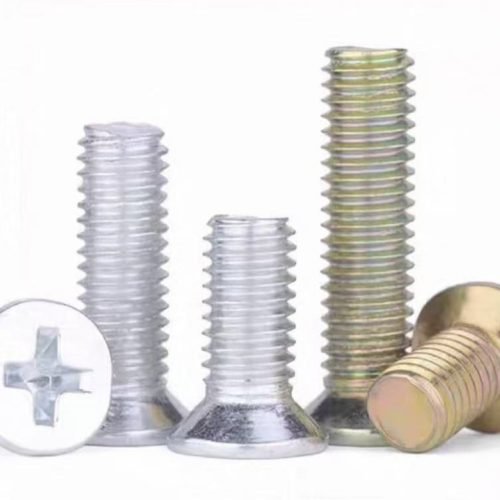

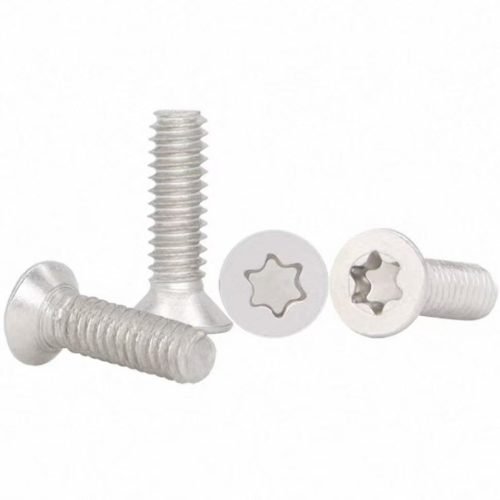

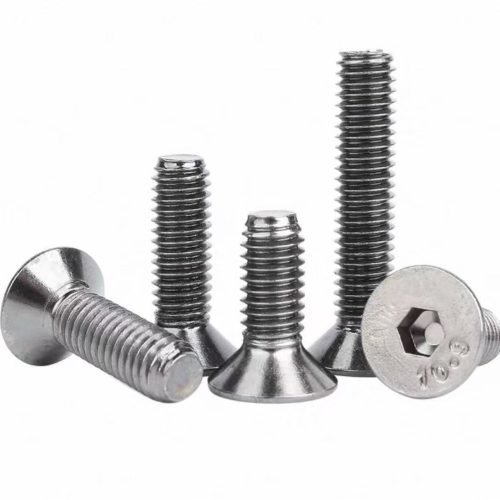

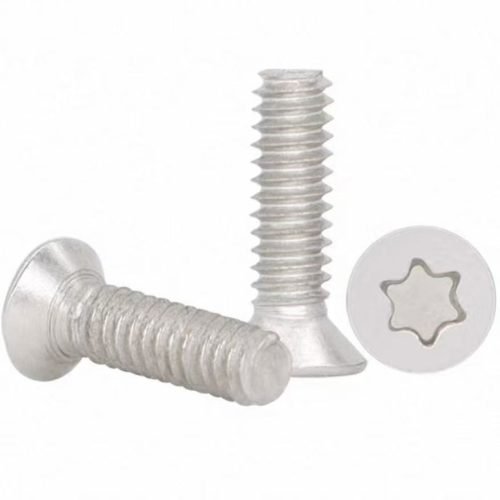

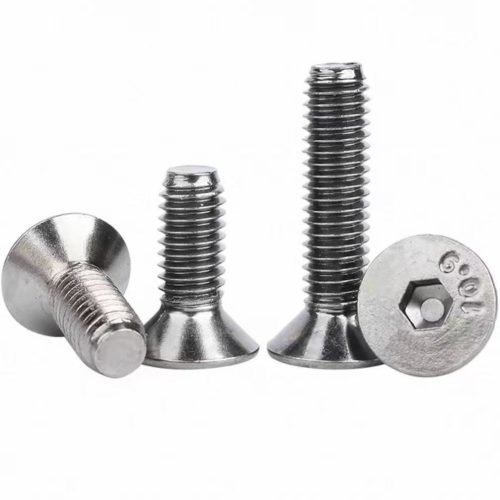

Carbon steel countersunk machine screw(Phillips/Slotted/Torx/Hex Socket)

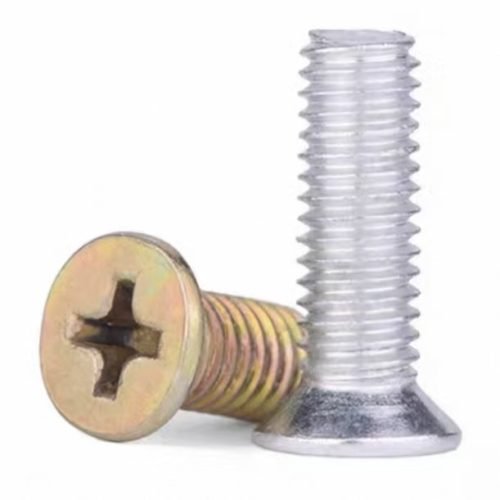

Carbon steel countersunk head machine screws are precision fastening components designed for applications requiring a flush surface finish after installation. The 90° conical head allows the screw to sit level with or below the material surface, making it suitable for assemblies where aerodynamic performance, safety, or aesthetic appearance is important. Available in multiple drive types including Phillips (cross recess), Slotted, Torx (six-lobe), and Hex Socket, these screws provide varied torque transmission performance and installation characteristics to meet different industrial assembly requirements.

ZSD Screw specialize in high-strength carbon steel countersunk head machine screws manufactured through integrated in-house production processes, including cold heading, precision thread rolling, controlled heat treatment, and automated surface finishing. Head angle accuracy, recess depth geometry, and thread tolerance are strictly inspected to ensure proper seating and stable preload performance. Each batch undergoes hardness and tensile verification in accordance with international mechanical property standards, ensuring consistent fastening reliability across OEM and industrial supply environments.

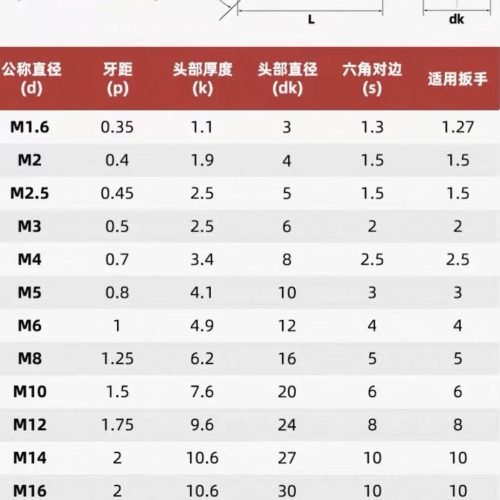

Standard countersunk head machine screw dimensions are manufactured according to DIN, ISO and ASTM standards. Custom drawings and samples are accepted.

Type: Carbon Steel Countersunk Head Machine Screw (Phillips / Slotted / Torx / Hex Socket Drive)
Diameter Range: M2 – M12
Length Range: 4 mm – 150 mm
Thread Type: Metric / UNC / UNF
Thread Form: Full Thread

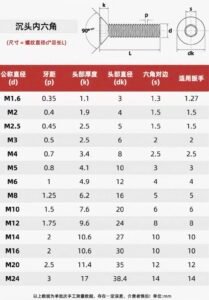

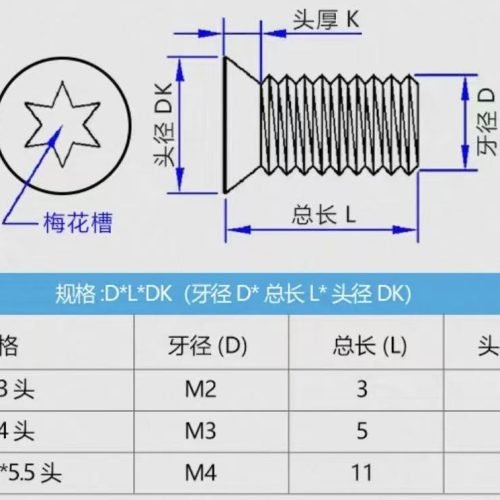

Standard: DIN 965 / ISO 7046 (Phillips Countersunk) / DIN 963 (Slotted Countersunk) / ISO 14581 (Torx Countersunk) / ISO 10642 (Hex Socket Countersunk)
Tolerance: According to standard or customer drawing.

We supply machine screws in a wide range of materials including: Carbon Steel (Q195, Q235, 10B21, 35#, 45#), Alloy Steel (SCM435), Stainless Steel (304, 316), Brass and Aluminum (on request).

Strength Grades: Carbon steel countersunk head machine screws are available in different strength grades to meet various load requirements: 4.8, 8.8, 10.9, 12.9, 14.9. Mechanical properties are controlled according to ISO 898-1 where applicable. Heat treatment is completed in-house to ensure stable tensile strength, uniform hardness distribution, and reliable fatigue resistance under dynamic and vibration-prone operating conditions.

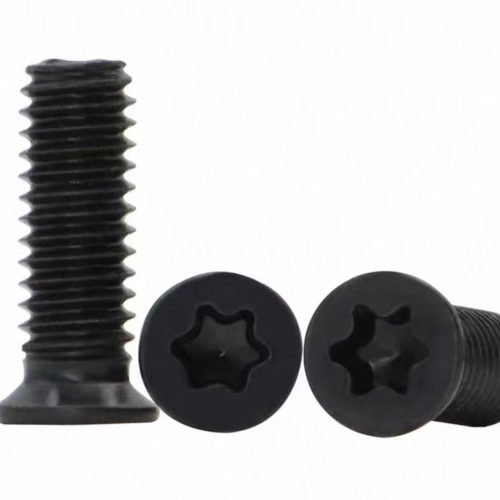

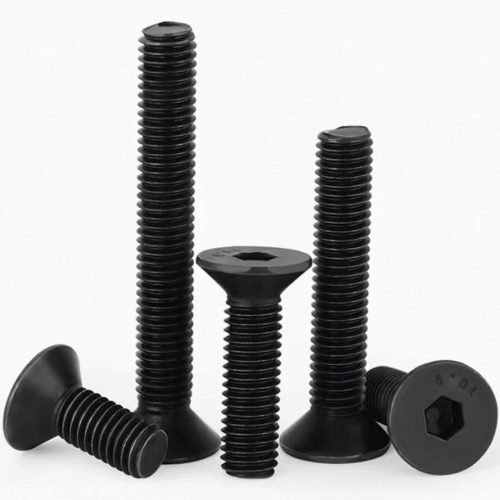

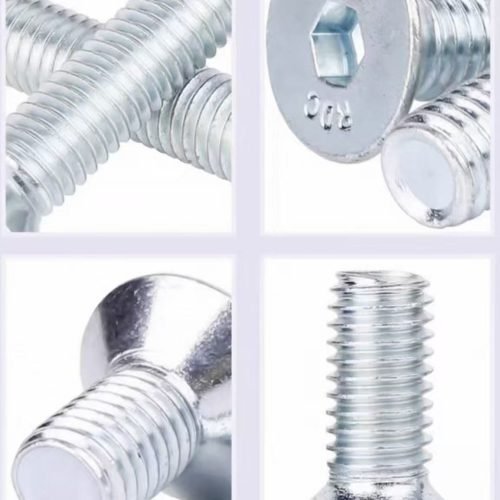

Surface Treatment: To improve corrosion resistance and service life, we offer the following surface finishes: Zinc plated (blue / white / yellow), Black oxide, Hot dip galvanized (for applicable sizes), Zinc flake coating, Phosphate, Dacromet. Coating thickness and adhesion are monitored to ensure consistent corrosion resistance performance. RoHS-compliant surface treatments are available for electronic and export-oriented applications.

Applications: In mechanical equipment manufacturing, drive type selection is determined by torque demand and surface finishing requirements. Phillips countersunk screws are widely used in general machine covers and structural panels where efficient assembly and self-centering installation are prioritized. Torx countersunk screws are preferred in higher torque assemblies requiring improved cam-out resistance, such as transmission housings and structural brackets. Hex socket countersunk screws are applied in precision machinery where controlled torque and repeated maintenance access are required. ZSD Screw ensures head angle precision and concentricity to guarantee flush seating and stable preload distribution.

In electronic equipment and industrial electronics, flush surface finishing is critical to prevent interference and ensure safe enclosure assembly. Slotted countersunk screws are commonly used in low-torque control panels and legacy equipment. Phillips drive screws remain standard for cabinet and enclosure installation. Torx and hex socket drives are increasingly selected in high-precision electronics and automated assembly lines due to improved torque control and reduced stripping risk. ZSD Screw maintains strict recess geometry control and coating compliance to ensure grounding reliability and dimensional consistency.

In the new energy sector, countersunk head machine screws are applied in inverter housings, photovoltaic mounting interfaces, battery modules, and structural enclosures where flush installation reduces surface protrusion and improves structural alignment. Torx and hex socket drives are typically prioritized in vibration-prone installations due to higher torque transmission efficiency. ZSD Screw applies controlled heat treatment and corrosion-resistant coatings to support long-term durability under outdoor exposure and temperature variation.

In conventional and renewable power generation facilities, these screws are used in structural covers, instrumentation panels, and auxiliary assemblies requiring flush installation for safety and maintenance efficiency. Hex socket countersunk screws are often selected in environments where repeated tightening cycles are required. ZSD Screw ensures mechanical grade compliance and stable hardness control to maintain preload stability under vibration and thermal expansion.

In the automotive and transportation industries, countersunk head machine screws are widely used in interior trim, aerodynamic panels, electronic modules, and structural components where a flush surface is required for safety and design integration. Phillips drive screws are commonly used for interior modules, while Torx drive screws are preferred in structural or vibration-sensitive areas due to higher torque capacity and reduced cam-out risk. ZSD Screw maintains tight dimensional tolerance and torque consistency to support high-volume OEM manufacturing standards.

In heavy industry and engineering equipment manufacturing, countersunk head screws are applied in machinery guards, conveyor systems, structural panels, and equipment housings where flush surfaces reduce snag risk and improve operational safety. Torx and hex socket drives are typically chosen for heavy-duty and maintenance-intensive environments. Through controlled raw material selection, precision head forming, and systematic inspection procedures, ZSD Screw ensures long-term fastening reliability in demanding industrial applications.
