304/316 stainless steel retaining ring

Stainless steel retaining rings are mechanical fastening components designed to secure parts onto shafts or inside housings by fitting into a machined groove. Once installed, the retaining ring provides axial retention, preventing components such as bearings, gears, pulleys, and bushings from moving along the shaft or within a bore. Stainless steel retaining rings are widely used in assemblies where reliable positioning, corrosion resistance, and long-term mechanical stability are required.

ZSD Screw manufactures stainless steel retaining rings using controlled stamping and precision forming processes to ensure consistent dimensional accuracy and reliable spring elasticity. Production follows internationally recognized standards such as DIN 471 and DIN 472. Dimensional specifications and installation requirements are produced according to these standards to ensure compatibility with standard shaft and bore groove designs. Stainless steel materials are selected to provide corrosion resistance and stable elastic performance for long-term industrial use. Quality control includes dimensional inspection, hardness verification, and batch traceability.

Standard retaining ring sizes are manufactured according to DIN specifications. Custom sizes or special designs can be produced according to customer drawings or equipment requirements.

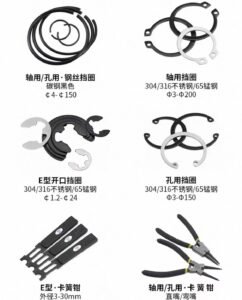

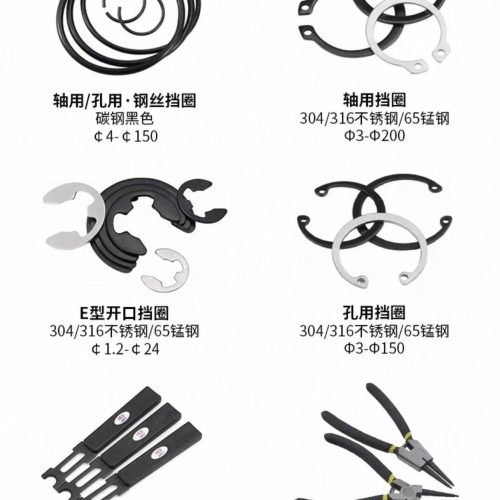

Type: Retaining Ring / Circlip

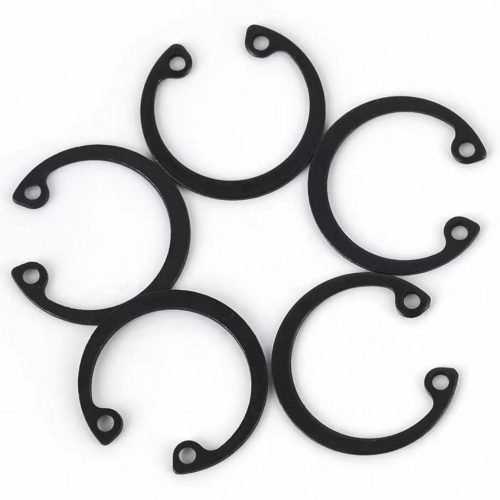

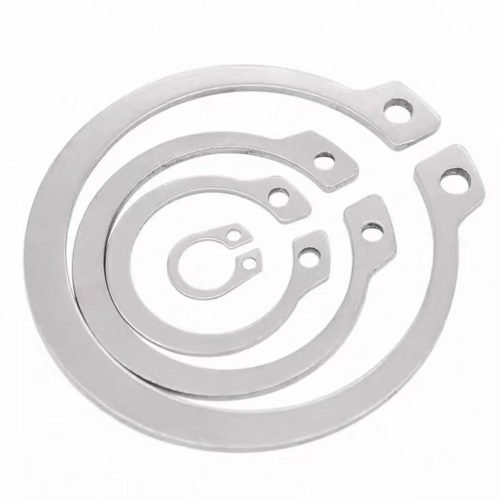

Types Available: External Retaining Ring (for shafts) / Internal Retaining Ring (for bores)

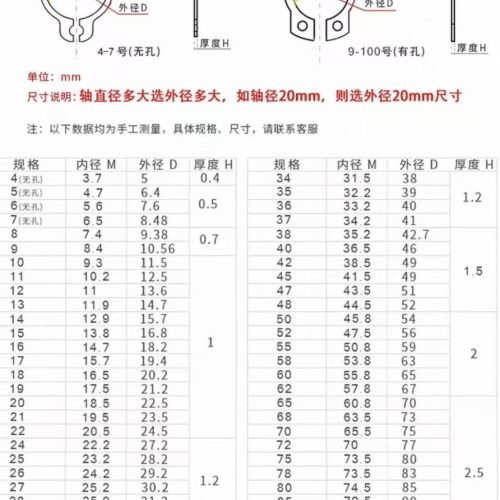

Diameter Range: 3 mm – 300 mm (depending on type)
Standard: DIN 471 / DIN 472
Tolerance: According to standard specifications or customer drawings.

Materials Available: Stainless Steel 304 (A2)、Stainless Steel 316 / 316L (A4). Other corrosion-resistant stainless steel materials can be supplied upon request depending on service environment requirements.

Strength Grades: Retaining rings do not use conventional bolt strength classifications. Their mechanical performance depends on material elasticity, hardness, and dimensional accuracy defined by manufacturing standards such as DIN 471 and DIN 472. For reference within general threaded fastening systems, carbon steel fasteners are commonly classified by strength grades 4.8、8.8、10.9、12.9、14.9 according to ISO 898-1. ZSD Screw maintains controlled stamping processes and dimensional inspections to ensure stable retaining performance and consistent product quality.

Surface Treatment: Stainless steel retaining rings generally rely on the natural corrosion resistance of stainless alloys. Depending on application requirements, the following surface finishing processes may be applied: Passivation treatment、Electropolishing、Cleaning and protective oil treatment. Additional surface finishing or special treatments can be arranged according to environmental conditions or project specifications.

Applications: In mechanical equipment manufacturing, stainless steel retaining rings are widely used for securing bearings, gears, pulleys, bushings, and rotating components on shafts or within housings. Proper groove engagement and elastic retention help maintain accurate axial positioning and prevent component displacement during machine operation.

In electronic equipment and industrial electronics, retaining rings are commonly used in small motors, actuators, precision instruments, control systems, and equipment assemblies. Their compact design allows secure component retention while maintaining precise alignment within electronic devices and automation equipment.

In the new energy sector, stainless steel retaining rings are used in photovoltaic tracking systems, inverter assemblies, battery equipment mechanisms, and energy storage system components. Their corrosion resistance and stable mechanical retention help ensure long-term operational reliability in renewable energy equipment.

In conventional and renewable power generation facilities, retaining rings are applied in generator assemblies, turbine auxiliary mechanisms, pump systems, and equipment support structures. Their ability to maintain secure axial positioning helps support reliable equipment operation under vibration and continuous mechanical loading.

In the automotive and transportation industries, stainless steel retaining rings are widely used in transmission systems, suspension components, brake assemblies, and steering mechanisms. They provide reliable axial retention for rotating components while maintaining stable performance under dynamic operating conditions.

In heavy industry and engineering equipment manufacturing, retaining rings are commonly used in construction machinery, mining equipment, lifting systems, and large mechanical assemblies. Their durable mechanical retention supports secure positioning of critical components in demanding industrial environments.

304-A2:  Moderate work hardening rate, suitable for general cold working and deep drawing processes. It has good cold workability and is widely used in the production of hexagon screws, nuts and washers.

316-A4: Added with molybdenum, it has stronger corrosion resistance than 304. It is especially suitable for applications in seawater and chemical media, with enhanced corrosion resistance and pitting resistance.

Notes：1. If the nickel content is lower than 8%, the minimum manganese content must be 5%.
2. When the nickel content is greater than 8%, there is no limit on the minimum copper content.
3. If the chromium content is lower than 17%, the minimum nickel content shall be 12%.
4. For austenitic stainless steel with a maximum carbon content of 0.03%, the maximum nitrogen content can reach 0.22%.
5. For products with larger diameters, to meet the specified mechanical properties, a higher carbon content may be specified in the manufacturer’s instructions; however, for martensitic steel, the carbon content shall not exceed 0.12%.
