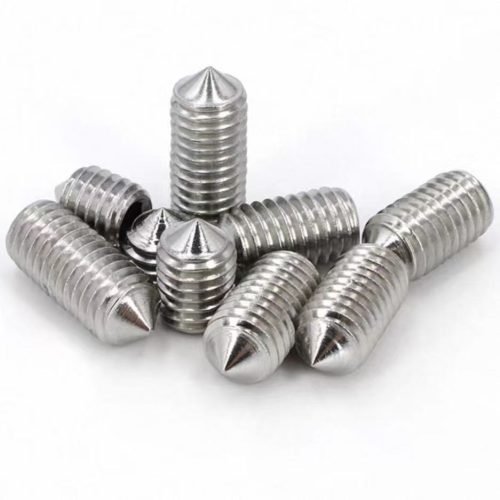

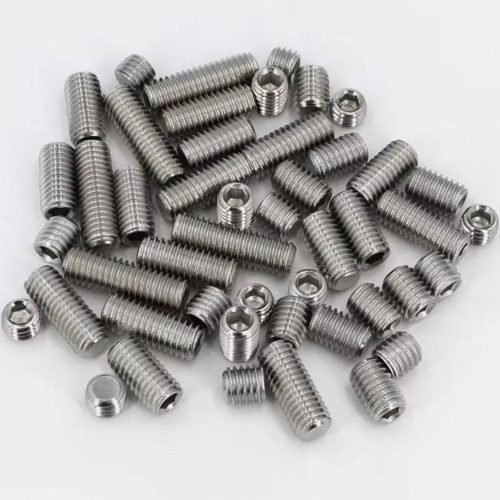

304/316 stainless steel internal hex socket set screw

Stainless steel internal hex socket set screws are headless threaded fasteners designed to secure components by applying pressure through the screw tip against a mating surface. These screws are widely used for positioning, locking, and preventing relative movement between machine parts such as shafts, pulleys, gears, and collars. The internal hex drive allows precise torque control during installation while maintaining a compact fastening structure suitable for limited assembly spaces.

ZSD Screw manufactures stainless steel internal hex socket set screws using precision cold forming and thread rolling processes to ensure consistent dimensional accuracy and thread integrity. Production follows internationally recognized standards including DIN 913, DIN 916, and ISO 4026. Material performance for stainless steel fasteners complies with ISO 3506, ensuring stable mechanical properties and corrosion resistance for industrial applications.

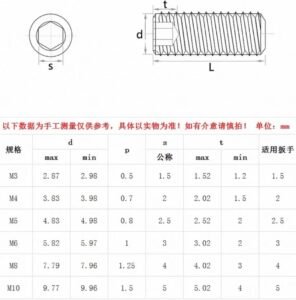

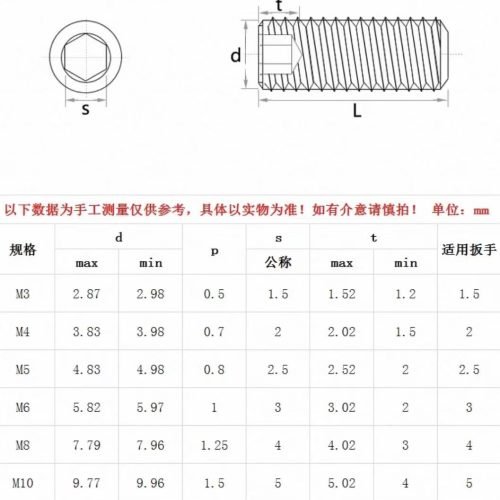

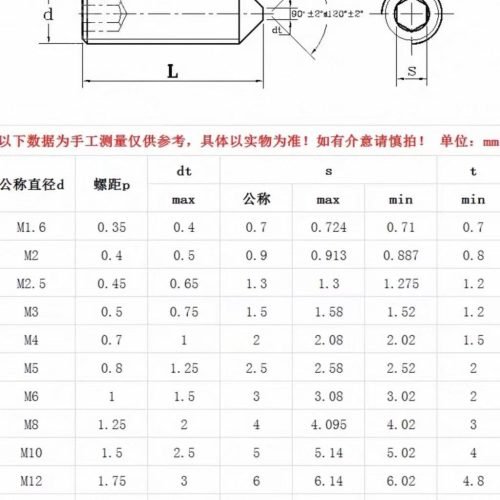

Standard socket set screw dimensions are manufactured according to DIN and ISO specifications. Custom drawings and samples are accepted for specialized applications.

Type: Internal Hex Socket Set Screw
Drive Type: Internal Hex (Allen)

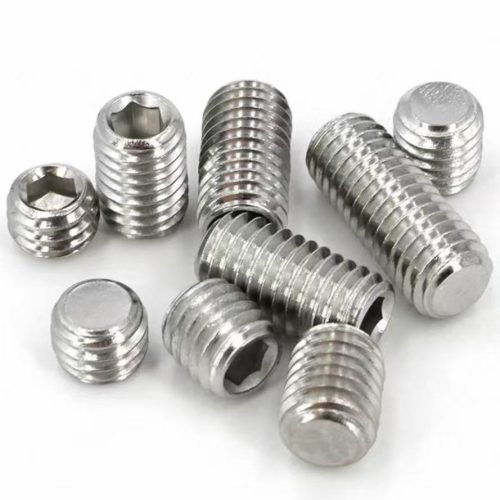

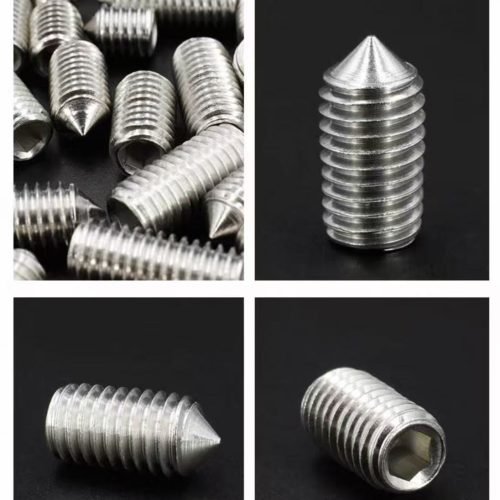

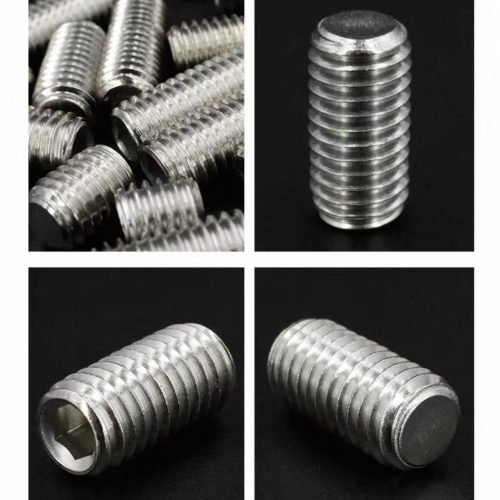

Point Types: Cup Point / Flat Point
Diameter Range: M2 – M24
Length Range: 3 mm – 100 mm
Thread Type: Metric / UNC / UNF
Standard: DIN 913 / DIN 916 / ISO 4026 / ISO 4029
Tolerance: According to standard specifications or customer drawings

Materials Available: Stainless Steel 304 (A2) Stainless Steel 316 / 316L (A4)
Special stainless materials can be produced upon request depending on corrosion resistance requirements.

Strength Grades: Stainless steel internal hex socket set screws are generally manufactured according to ISO 3506 with common property classes including A2-50, A2-70, A4-70, and A4-80. These classifications define tensile strength and mechanical performance suitable for different fastening conditions. For comparison within mechanical fastening systems, carbon steel fasteners commonly use strength grades 4.8, 8.8, 10.9, 12.9, 14.9 as defined in ISO 898-1. ZSD Screw performs dimensional inspection, hardness verification, and batch traceability during production to maintain consistent fastening performance.

Surface Treatment: Stainless steel socket set screws generally rely on the natural corrosion resistance of chromium-nickel stainless alloys. Typical finishing processes include: Passivation treatment、Cleaning and oil protection、Electropolishing (when required for improved surface quality) Additional surface processes can be arranged according to specific environmental or industry requirements.

Applications: In mechanical equipment manufacturing, stainless steel internal hex socket set screws are commonly used for fixing rotating components such as gears, pulleys, collars, couplings, and shafts. Cup point designs provide stronger holding power through localized contact, while flat point designs reduce surface damage when positioning parts. Precision threads and controlled material quality help maintain reliable positioning under vibration and cyclic mechanical loads.

In electronic equipment and industrial electronics, these set screws are widely applied in precision assemblies, actuator systems, instrumentation equipment, control modules, and structural mounting components. Their compact headless design allows installation in limited spaces while maintaining accurate alignment and secure component positioning in sensitive electronic equipment.

In the new energy sector, stainless steel set screws are used in photovoltaic tracking systems, inverter housings, energy storage equipment frames, and supporting mechanical assemblies. These applications often operate in outdoor or semi-exposed environments where corrosion resistance and dimensional stability are important for long-term fastening reliability.

In conventional and renewable power generation facilities, internal hex socket set screws are used in auxiliary equipment, instrumentation mounting structures, adjustment mechanisms, and support brackets within generator systems, turbine equipment, and control units. Secure positioning and vibration resistance help maintain stable equipment alignment during long-term operation.

In the automotive and transportation industries, stainless steel set screws are used in interior mechanical assemblies, electrical component mounts, adjustment mechanisms, sensor fixtures, and light structural connections. The compact internal hex design enables controlled tightening in restricted spaces often encountered in vehicle assembly.

In heavy industry and engineering equipment manufacturing, these screws are widely applied in industrial machinery, chemical processing equipment, marine installations, and structural positioning mechanisms. Stainless steel materials provide corrosion resistance and long-term reliability in environments exposed to moisture, chemicals, or outdoor conditions, supporting stable operation of engineering equipment.
